RTK module integrated with geomagnetic integrated board card

Brand Name : OTW

Model Number : WT-62-RK (5883P)

Certification : CE/ISO

Place of Origin : China

MOQ : xx

Price : xx

Payment Terms : D/P

Delivery Time : 2-3 days

Packaging Details : LCC

Contact Now

Affordable RTK High-Precision Module with Geomagnetic 5883P Development Board

This cost-effective RTK module combines high-precision positioning with advanced geomagnetic sensing capabilities, ideal for industrial and manufacturing applications requiring accurate location data.

Module Performance

Chip: BG11XX
Receiver Type: BDS:B1I/B1C & B2a GPS/QZSS:L1C/A & L5 GLONASS:L1 Galileo:E1 & E5a
Arithmetic: Integrated RTK algorithm
Protocol: NMEA-0183 or custom GALILEO L1 open service (with upgrade)
NMEA Messages: RMC, VTG, GGA, GSA, GSV, GLL
Baud Rate: 4800bps~921600bps (default 115200bps)
Channels: 128
Sensitivity: Tracking: -167dBm, Capture: -158dBm, Cold start: -148dBm

Performance Metric	Specification
Cold Start	Average 28 seconds
Hot Start	Average 1 second
Accuracy	Level: 1cm+1ppm CEP50; Elevation: 2cm+1ppm CEP50
Timepulse Signal	RMS 30 ns
Max Height	18000m
Max Speed	515 m/s
Max Acceleration	≤ 4G
Regeneration	0.25-10 Hz
Positioning Mode	A-GNSS, double frequency RTK
Compass	5883P

Physical Specifications

Connector: 6PIN 1.0mm JST
Type: 24PIN LCC package

Power Specifications

Voltage: 1.8V~3.3V
Power Consumption:
- Operational mode: 103mW@1.8V
- Standby mode: <20μW
- Energy-saving mode: search: 38mA, trace: 29mA
- Power saving mode: <10mA

Operating Environment

Humidity Range: 5% to 95% non-condensing
Working Temperature: -40℃ to 85℃
Storage Temperature: -40℃ to 85℃

Product Tags:

RTK module development board

geomagnetic integrated board card

RTK module with geomagnetic sensor

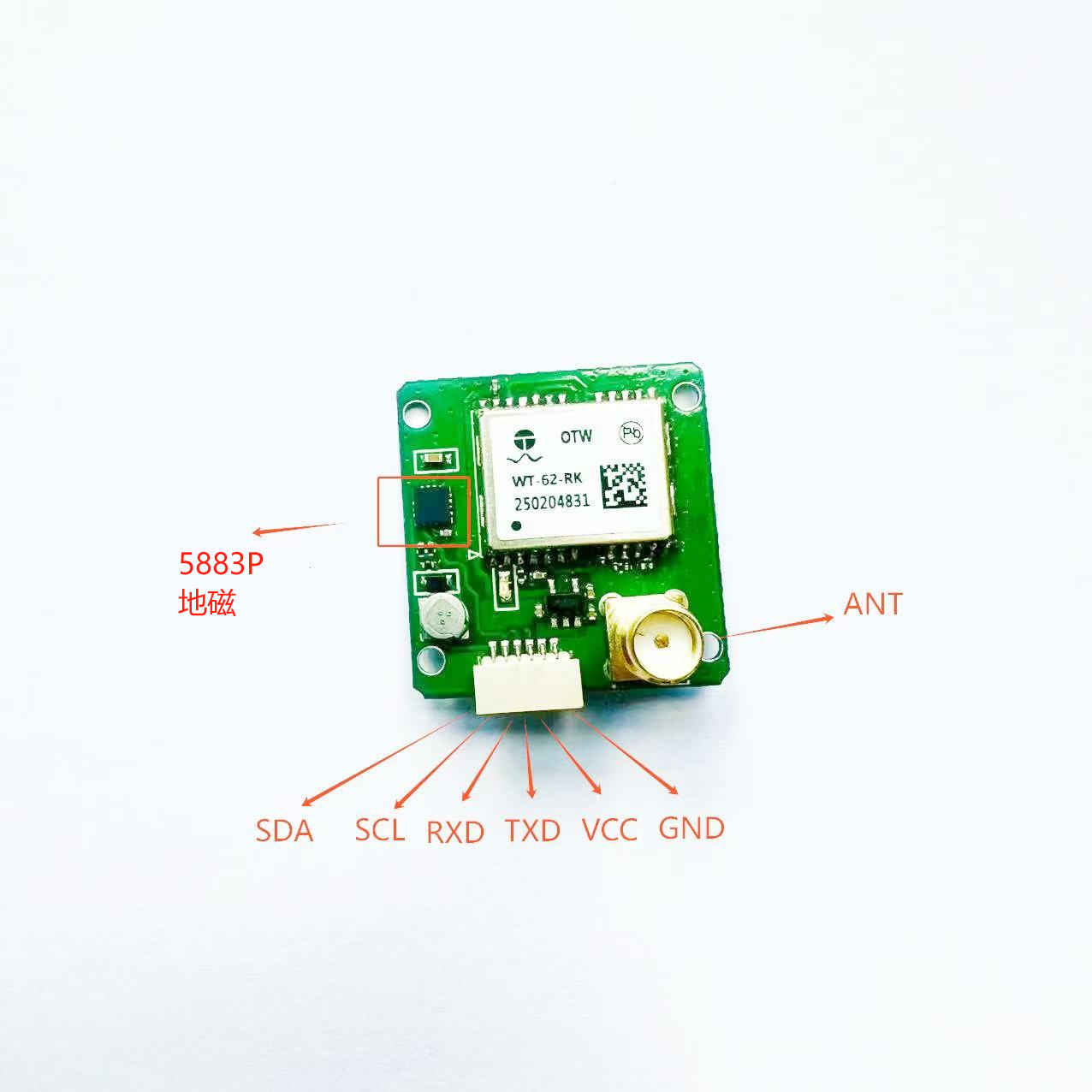

RTK module integrated with geomagnetic integrated board card Images
